CATALOGUE - Cylinders & Heads
|
CATALOGUE - Cylinders & Heads |
|

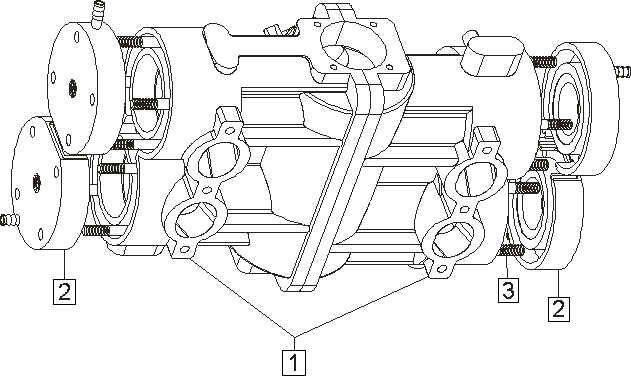

Cylinders & Heads
Ref. No. |
Part No. |
Description |
Photo |
1 |
101 |

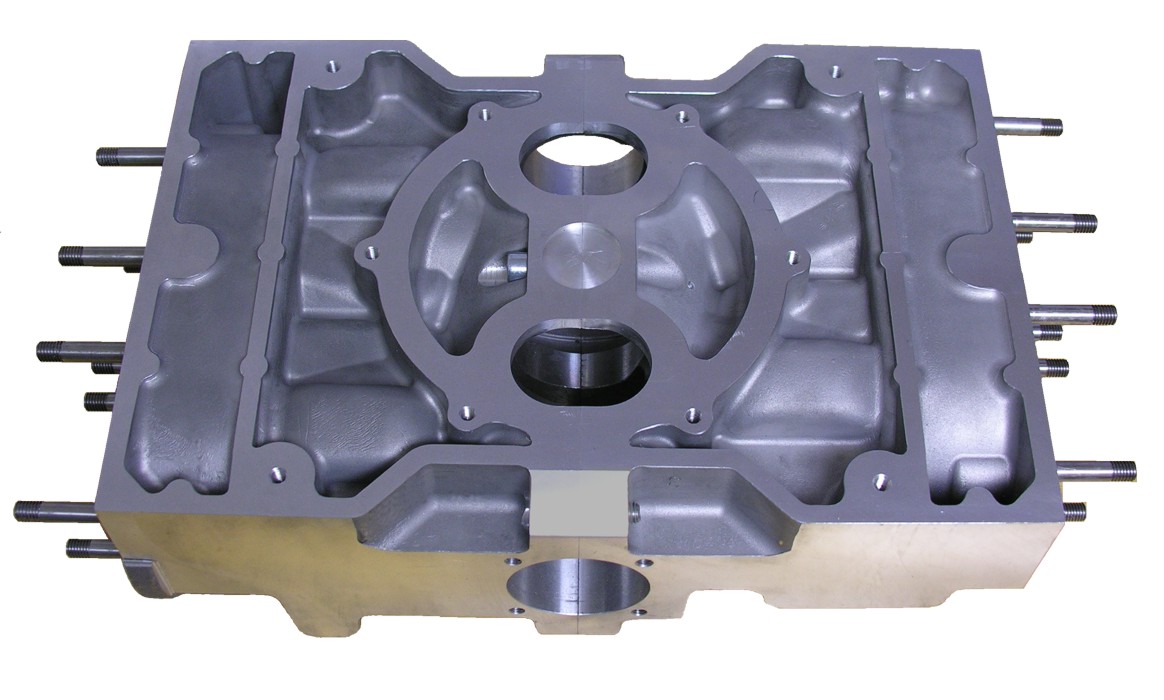

Cylinders without heads and bearings O-500 |
 |
1 |
102 |
Cylinders without heads and bearings O-700 |
|
2 |
111 |

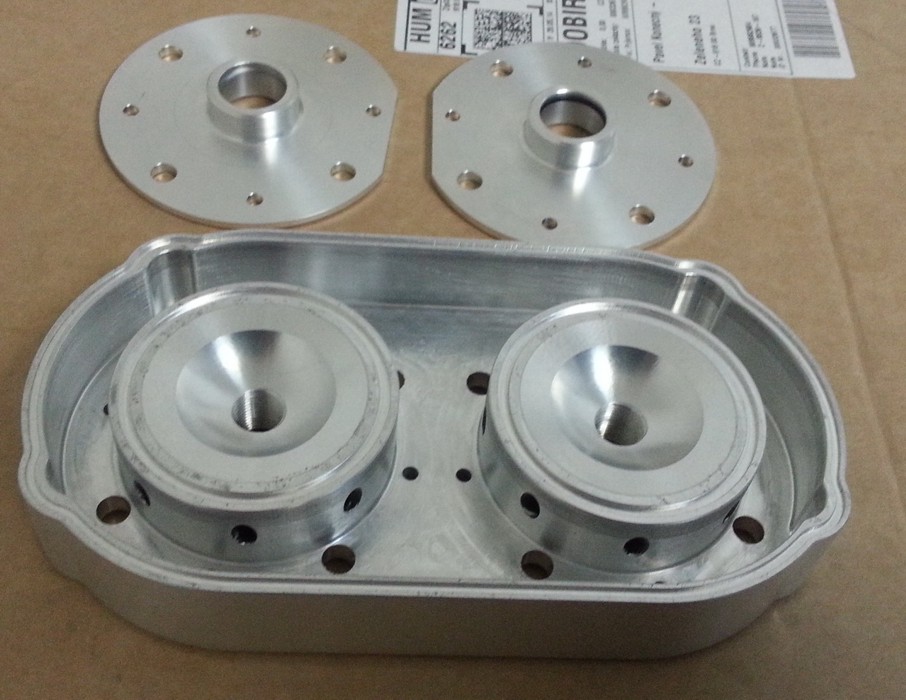

CNC machined head O-500 with aluminium caps and cooling around spark plug |
 |
|
2 |

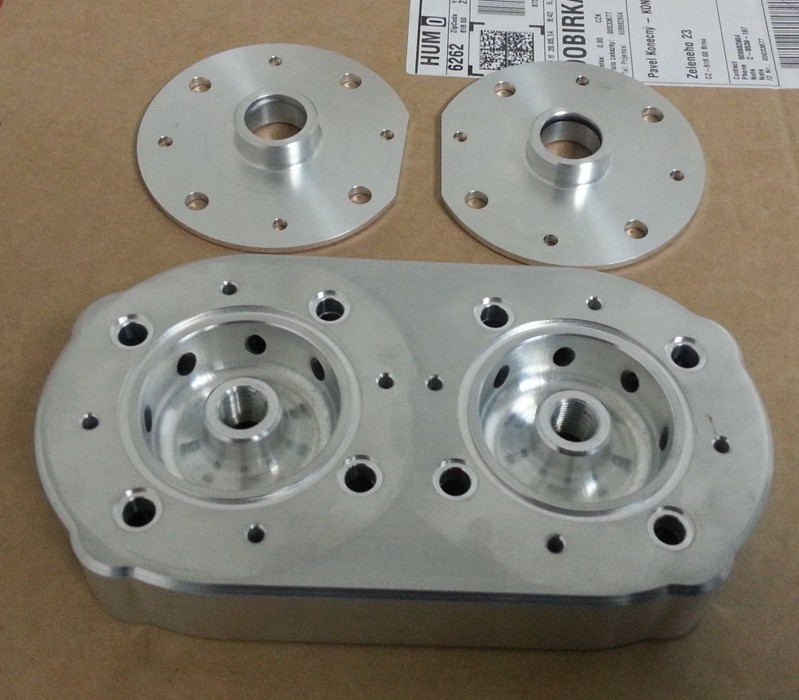

112 |
CNC machined head O-700 with aluminium caps and cooling around spark plug |
 |
|
4 |

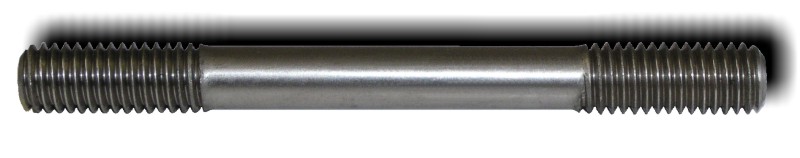

110-020 |

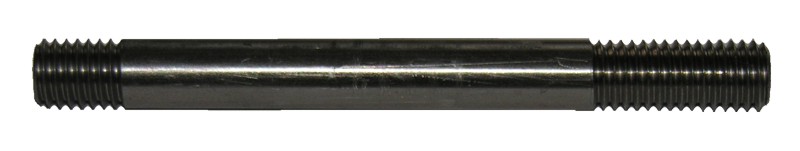

Stud bolt M8x83 |
 |
|
121 |

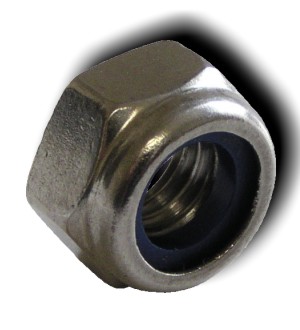

Nuts M8 (16 pcs.) stainless steel A4 |
 |
|
5 |
107-021 |
Stainless steel washer |
 |
|
5 |
107-026 |

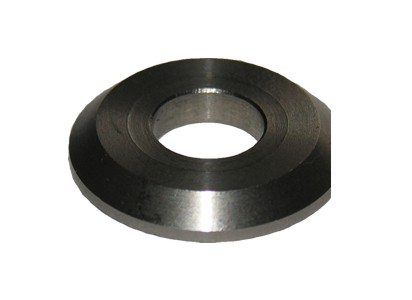

Stainless steel washer (cropped) |
 |
|
107-024 |

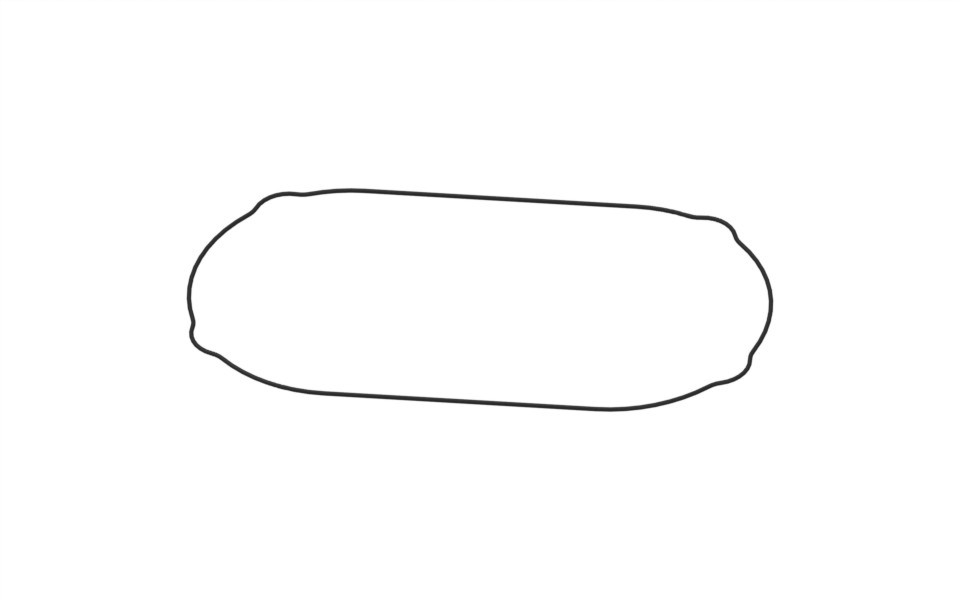

Head outside o-ring |
 |
|
|

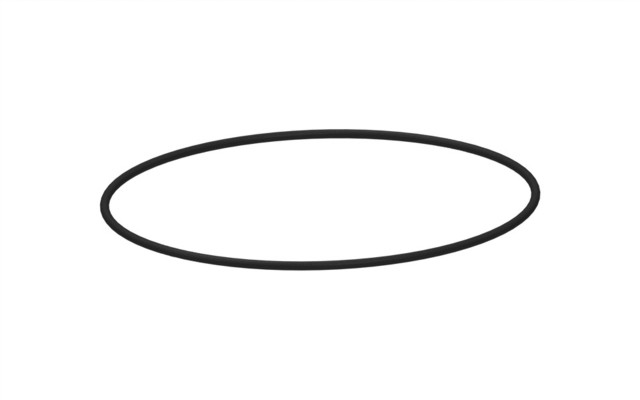

107-023 |
Rubber o-ring 69x1.5mm |
 |
|
|
107-060 |
Rubber o-ring 60x2 mm |
|
|
|
107-070 |
Rubber o-ring 70x2 mm |
|
|
|

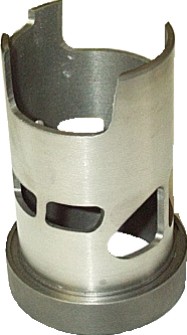

Cylinder liner (Sleeve) Made by pattern |
 |
All prices will be confirmed for request.
