PRICE LIST - KONNY 500cc PISTONS
|
PRICE LIST - KONNY 500cc PISTONS |
|
KONNY 500cc PISTONS
 |

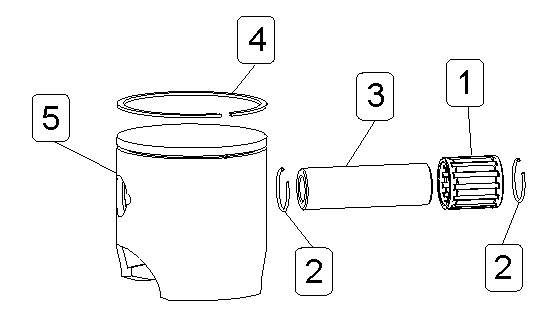

Drawing |
 |
|
|
Installation pistons |
|
|
|
Ref. No. |
Part No. |
Description |
Photo |
1 |
300 |
Needle bearing for gudgeon pin |
 |
2 |
301 |
Clip 15 mm (2 pieces) |
 |
3 |
332 |
Piston pin, length 45 mm |
 |
4 |
3220 |
Piston ring 54.00 mm (standard) |
 |
4 |
3221 |
Piston ring 54.10 mm (oversize) |
|
4 |
3222 |
Piston ring 54.20 mm (oversize) |
|
4 |
3223 |
Piston ring 54.25 mm (oversize) |
|
4 |
3225 |
Piston ring 54.50 mm (oversize) |
|
5 |
31200 |

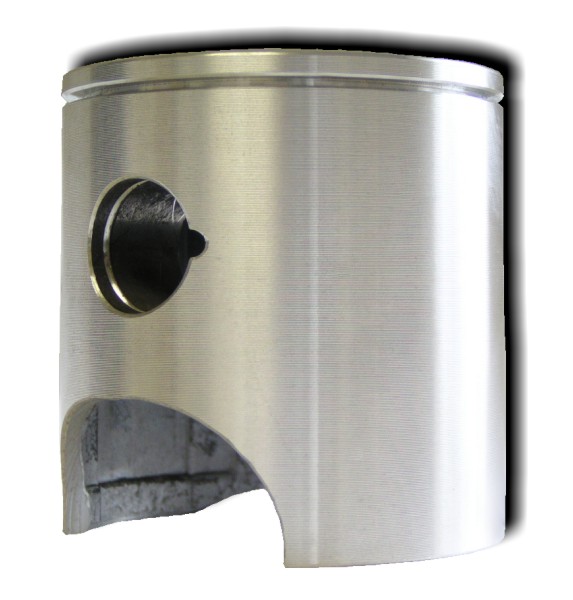

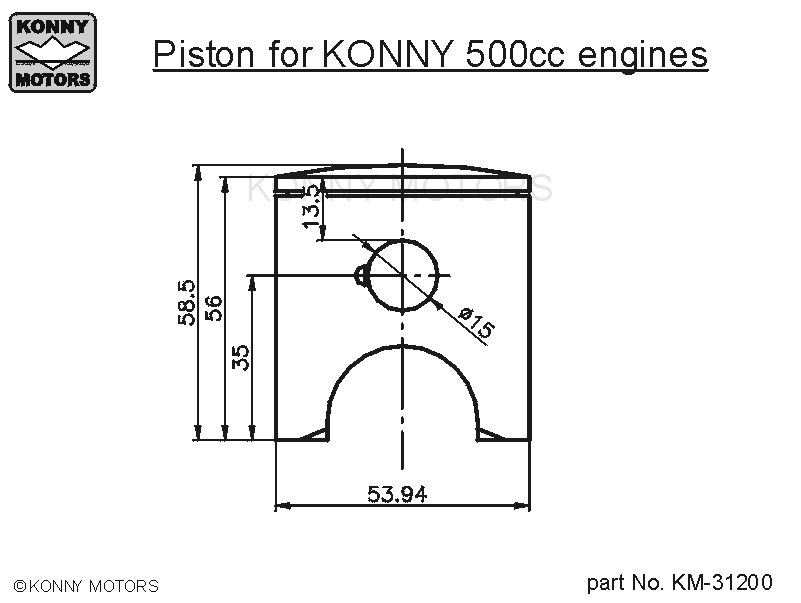

Piston 53.94-2 (standard) |
 |
5 |
31201 |
Piston 53.94-1 (standard) |
|
5 |
31210 |
Piston 54.04-2 (oversize) |
|
5 |
31211 |
Piston 54.04-1 (oversize) |
|
| 5 | 31220 | Piston 54.14-2 (oversize) |
|
| 5 | 31221 | Piston 54.14-1 (oversize) |
|
| 5 | 31230 | Piston 54.24-2 (oversize) |
|
| 5 | 31231 | Piston 54.24-1 (oversize) |
|
All prices will be confirmed for request.
