CATALOGUE - Cylinders & Heads

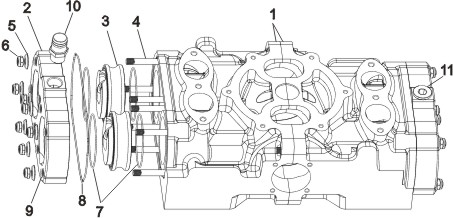

Ref.

No.

Part

No.

Description


1

105-001

500cc cylindercases

Exhaust up and inlet up on same side.

Bores are honed to 54.00mm

   Price including 16pcs. stud shorts.

1

105-002

500cc cylindercases - Exhaust down and inlet up.

Bores are honed to 54.00mm

 Price including 16pcs. stud shorts.
500ccc cylinders

1

107-001

700cc cylindercases

Exhaust up and inlet up on same side.

Bores are honed to 64.02mm

   Price including 16pcs. stud shorts.

1

107-002

700cc cylindercases - Exhaust down and inlet up.

Bores are honed to 64.02mm

   Price including 16pcs. stud shorts.
500ccc cylinders

2

105-010

   500cc cylinderhead housing

2

107-010

   700cc cylinderhead housing

3

107-011

  700cc Inserted chamber with straight thread

3

107-012

  700cc Inserted chamber with oblique thread

4

110-020

  Stud bolt M8x83 Bolts

5

107-021

  Stainless steel washer Washer

5

107-026

  Stainless steel washer  (cropped) Washer

6

121

  Nuts M8 (16 pcs.) stainless steel A4 Stainless steel nut M8

7

107-023

  Rubber o-ring 69x1.5mm (for 700cc) Rubber O-ring

8

107-024

  Head outside o-ring Head gasket

9

107-025

  Rubber o-ring 8mm

10

107-030

  Water outlet G1/2” bore 15mm OD.20mm


107-031

  Water plug G1/2”


107-040

  Cover plate of oil seal (2mm thickness)


Cylinder liner (Sleeve) Made by pattern


SLEEVE

All prices will be confirmed for request.
