MOTORBIKE CATALOGUE- Ignition
|
MOTORBIKE CATALOGUE- Ignition |
|
 |

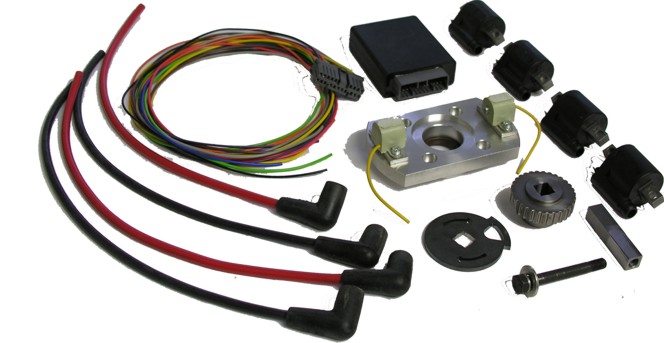

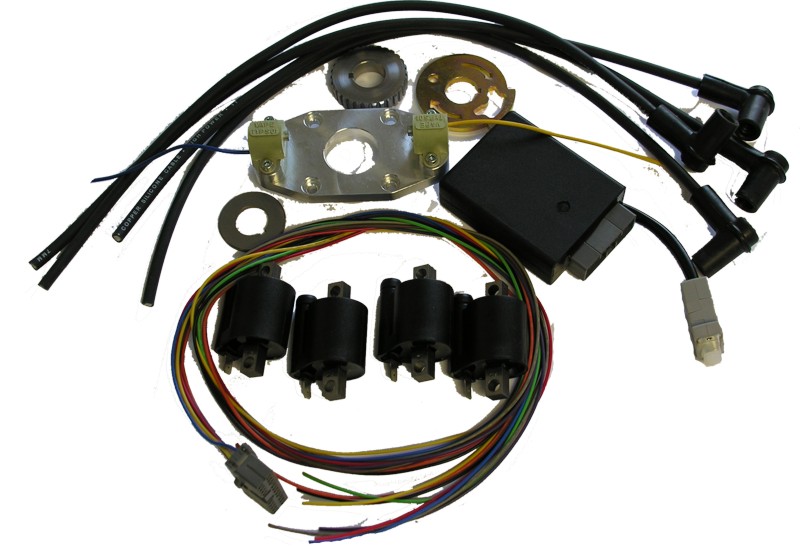

Complete ignition including: Ignition box, ignition plate, 2 pickups, 4coils with high voltage cabels length 0.5meters, flywheel, tooth gear, wire harness length 1 meter, washers or square shaft.
|
WIRING DIAGRAM
|
|
Ref.No. |
Part No. |
Description |
Photo |
|
750 |
Complete ignition for König engines (tooth gear with the square hole 12x12mm) |
|
|
| 751 | Complete ignition for 700cc KONNY engines |
 |
|
| 771 | Complete ignition for 500cc KONNY engines |
|
|
|
755 |

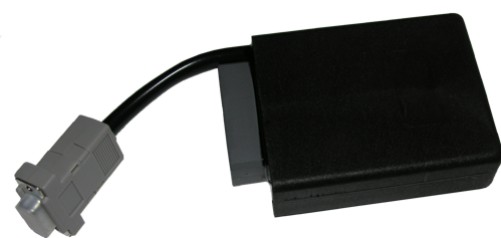

Ignition box |
 |
|
| 1 | 756 | Ignition plate |
 |
| 2 |
722 |

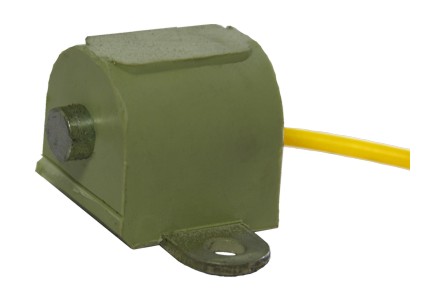

Ignition pickup (sensor) yellow wire |
|

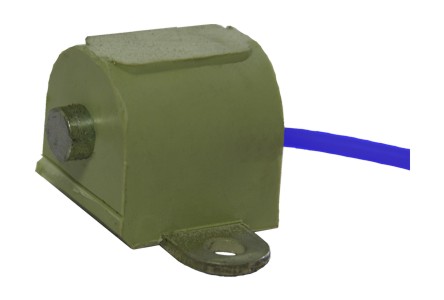

| 2 | 723 | Ignition pickup (sensor) blue wire |
|

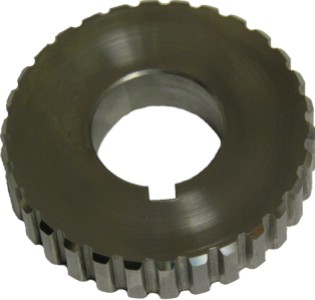

| 3 | 724 | Tooth gear hole 20mm |
 |

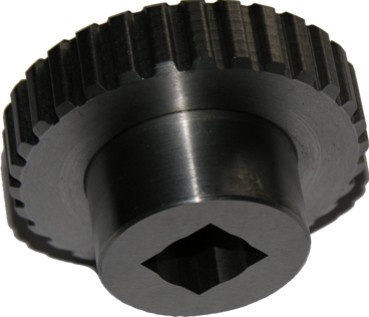

| 725 | Tooth gear square hole 12x12mm |
 |
|
| 4 | 726 | Washer 20x40x3 |
 |
| 727 | Ignition flywheel square hole 12x12mm |
 |
|
| 5 | 728 | Ignition flywheel hole 20mm and 4mm groove |
 |
| 6 | 729 | Washer 8x30x7 |
 |
| 7 | 745 | Oil seal 25x35x7 |
 |
| 730 | Ignition coil only |
|
|

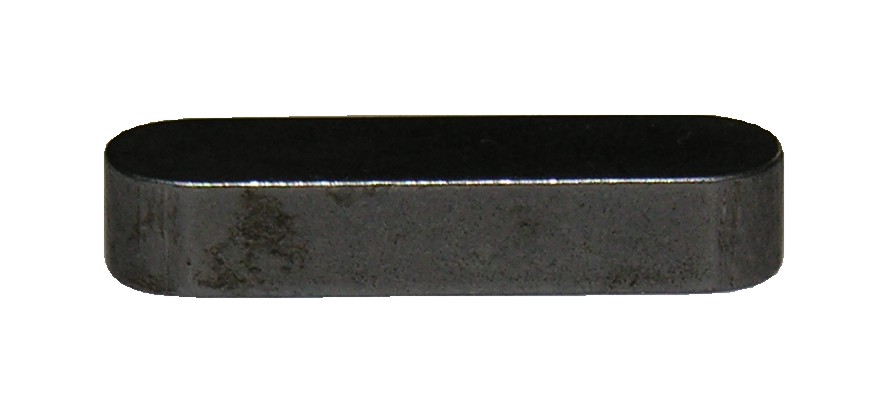

| 8 | 731 | Keyway 4x4x20 |
 |
| 733 | Rubber spark plug cap long type (black) NGK |
|
|
| 735 | Rubber spark plug cap long type (red) NGK |
|
|
| 740 | High voltage cable with spark plug 0.5m length RED or BLACK |
 |
|

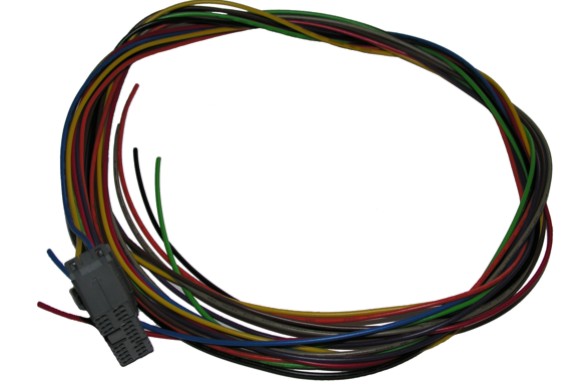

| 741 | Wire harness length 1meter |
 |
|
| 791 | Tachometer 0-15000 RPM 12V (KOSO) |
 |
All prices will be confirmed for request.
